Combustible Dust Baghouse Dust Collector for Industrial Dust
Collection

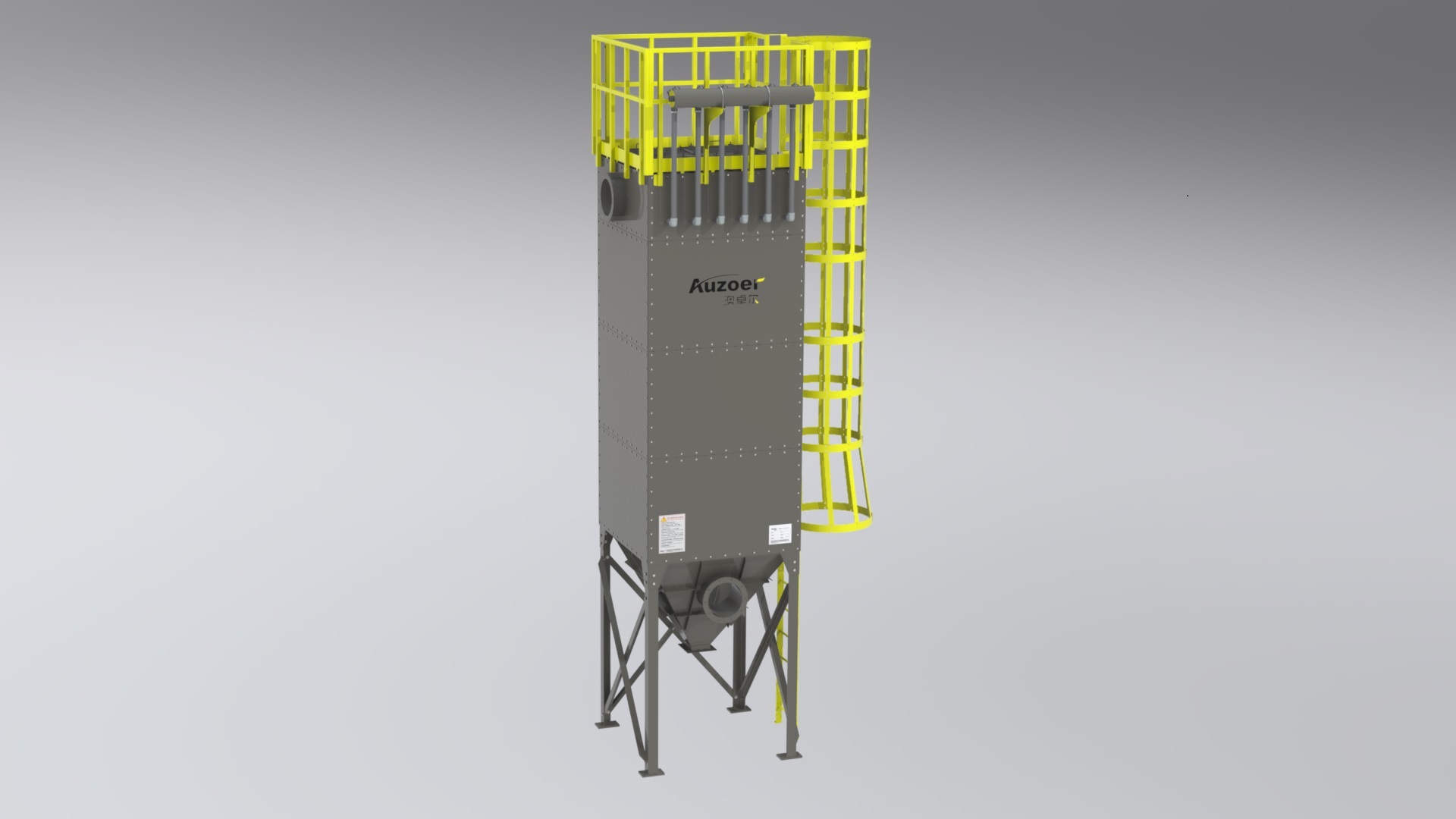

ADC Baghouse Dust Collector
Explosion-Proof Dust Collector with Explosion suppression equipment
and certification by Atex. Teldust offers a special range of Dust
collectors designed for use in potentially explosive environments.
All versions are electrostatically dissipative and full compliance
with ATEX Directive 2014/34/EU (old designation 94/9/EC) for use in
hazardous areas. Application fields where the Dust collectors are
used for industrial ventilation systems, and we have the following
types of ATEX Dust collectors:
- Fabric Dust collectors, Explosions-proof
- Cartridges Dust collectors, Explosions-proof
The characteristics of these filters are as follows:
- They are electrostatically dissipative ATEX Dust collectors for
safe operation with all kinds of explosive groups and in hazard
zones as specified in the ATEX Directive
- The service temperature range goes from -40°C to +80°C.
- Since explosions in filter plants are disproportionately likely,
Teldust offers our products together with explosion safety devices
and Explosion suppression systems which are designed to suppress or
extinguish an explosion or deflagration.
- The danger of an explosion develops when, in addition to the dust
that has been extracted from other system parts, sparks or glowing
embers also are introduced.
Therefore, explosion protection of Dust collectors will be required
in nearly all situations unless explosive dust clouds are extremely
unlikely or all potential ignition sources can be excluded with
100% certitude. Teldust Dust collectors can be used safely over the
entire range of explosive groups and in all hazardous zones
specified in the ATEX Directive.
Baghouse are the most versatile dust collector style and can be
used in all applications. Baghouse collectors with traditional bag
filters are preferred for applications with larger or mixed range
of dust particle sizes, heavier dust loading, fibrous/sticky dusts
or higher temperatures (normally up to 550F, in some cases up to
750F with specialty fabrics). The filters in baghouses have a much
longer useful service life compared to cartridges and can handle
much harsher applications.
ADC dust collector is designed with modular and multi-filters that can
be ducted to different applications like metal grinding, wood
working, composites, buffing and polishing, blasting, welding fume,
chemical mixing and processing. It can be delivered in short
time.The modular parts means lower cost in transportation,faster
installation and easier maintenance.
It features interchangeable filters between bags and long
cartridges that can meet customized requirements, and integrated of
years of application technology of bag house dust collector and
filter cartridge dust collector.
Technical Data
| Model | Modular Qty | Modular Dimension | Valve Quantity | Filter Quantity | Filter Length(mm) | Filter Area(㎡) |
| Length | Height | L(mm) | W(mm) | H(mm) | Circular Bag | Pleated Bag | Long Cartridge |
| ADC-11-10 | 1 | 1 | 1524 | 1524 | 4800 | 6 | 36 | 1000 | 17 | 31 | 83 |
| ADC-11-20 | 1 | 1 | 1524 | 1524 | 5808 | 6 | 36 | 2000 | 34 | 61 | 166 |
| ADC-11-30 | 1 | 1 | 1524 | 1524 | 6816 | 6 | 36 | 3000 | 51 | 92 | 248 |
| ADC-21-20 | 2 | 1 | 3037 | 1524 | 5808 | 12 | 72 | 2000 | 68 | 122 | 331 |
| ADC-21-30 | 2 | 1 | 3037 | 1524 | 6816 | 12 | 72 | 3000 | 102 | 183 | 497 |
| ADC-31-30 | 3 | 1 | 4550 | 1524 | 6816 | 18 | 108 | 3000 | 153 | 275 | 745 |
| ADC-41-30 | 4 | 1 | 6063 | 1524 | 6816 | 24 | 144 | 3000 | 203 | 366 | 994 |
| ADC-41-40 | 4 | 1 | 6063 | 1524 | 7824 | 24 | 144 | 4000 | 271 | 488 | 1325 |
| ADC-51-30 | 5 | 1 | 7576 | 1524 | 6816 | 30 | 180 | 3000 | 254 | 458 | 1242 |
| ADC-51-40 | 5 | 1 | 7576 | 1524 | 7824 | 30 | 180 | 4000 | 339 | 610 | 1656 |
| ADC-32-50 | 3 | 2 | 4550 | 3037 | 8832 | 36 | 216 | 5000 | 509 | 916 | 2484 |
| ADC-32-60 | 3 | 2 | 4550 | 3037 | 9840 | 36 | 216 | 6000 | 610 | 1099 | 2981 |
| ADC-42-50 | 4 | 2 | 6063 | 3037 | 8832 | 48 | 288 | 5000 | 678 | 1221 | 3312 |
| ADC-42-60 | 4 | 2 | 6063 | 3037 | 9840 | 48 | 288 | 6000 | 814 | 1465 | 3974 |
| ADC-52-50 | 5 | 2 | 7576 | 3037 | 8832 | 60 | 360 | 5000 | 848 | 1526 | 4140 |
| ADC-52-60 | 5 | 2 | 7576 | 3037 | 9840 | 60 | 360 | 6000 | 1017 | 1831 | 4968 |
| ADC-62-50 | 6 | 2 | 9089 | 3037 | 8832 | 72 | 432 | 5000 | 1017 | 1831 | 4968 |
| ADC-62-60 | 6 | 2 | 9089 | 3037 | 9840 | 72 | 432 | 6000 | 1221 | 2197 | 5962 |
The modular parts are designed for freely assembly with accurate
processing,strict quality control which could realize mass
production and shortened lead time.
Through the air flow simulation optimization, shell strength
optimization to ensure the efficient and safe operation of the dust
collector.
