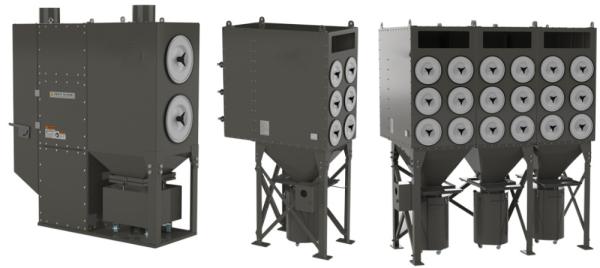

Metal Grinding Dust Collector / Dust Extraction Equipment Fume Collection

Ask Lasest Price
Brand Name :	AUZOER
Model Number :	CDC
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300 sets per year
Delivery Time :	45-60 days
Certification :	ISO

Add to Cart

Product Details
Company Profile

Metal Grinding Dust Collector / Dust Extraction Equipment Fume Collection

Metal Grinding Dust Collector / Dust Extraction Equipment Fume Collection

Pulse Jet Filters come in a variety of shapes, sizes, and filter bag layouts to fit a broad range of applications. But the cleaning cycle is the same throughout the line. Dust-laden air or gas enters the Pulse Jet Filter through a hopper inlet where it is directed toward a deflector that slows the airflow and causes heavier particles to fall directly into the hopper.

Lighter airborne particles follow the air stream into the filter area and collect on the outside surfaces of the bag filters. The filtered air then flows into the clean air plenum and exits the unit. Sequential signals from a timer open valves allowing short bursts of compressed air to reverse the airflow in each row of bags. This dislodges the surface dust from the bags so that it falls into the hopper.

Standard Models

Model	Modular Quantity	Filter Area(㎡)	Filter Cartridge Quantity(pcs)	Electromagnetic Valve Quantity(pcs)	Gas Consumption(m3/min)	Weight(Kg)	Dimension(mm)
Model	Modular Quantity	Filter Area(㎡)	Filter Cartridge Quantity(pcs)	Electromagnetic Valve Quantity(pcs)	Gas Consumption(m3/min)	Weight(Kg)	Length	Width	Height
CDC8-2	1	184	8	4	0.064	980	2160	1014	3450
CDC16-2	2	368	16	8	0.128	1960	2160	2024	3450
CDC24-2	3	552	24	12	0.192	2940	2160	3034	3450
CDC12-3	1	276	12	6	0.096	1090	2160	1014	3900
CDC24-3	2	552	24	12	0.192	2180	2160	2024	3900
CDC36-3	3	828	36	18	0.288	3270	2160	3034	3900
CDC16-4	1	368	16	8	0.128	1200	2160	1014	4350
CDC32-4	2	736	32	16	0.256	2400	2160	2024	4350
CDC48-4	3	1104	48	24	0.384	3600	2160	3034	4350
CDC64-4	4	1472	64	32	0.512	4800	2160	4044	4350
CDC80-4	5	1840	80	40	0.64	6000	2160	5054	4350
CDC96-4	6	2208	96	48	0.768	7200	2160	6064	4350
